UV DTF-F604

UV DTF-F604

UV-F604 DTF Printing Machine

Printhead: 4*EPSON I3200-U1 Printing Speed: 6PASS 6m²/h 8PASS 6m²/h 12PASS 2-6㎡/h Print Width: Max 700mm Printing Color: CMYK+W+V+G Machine size: L/W/H: 1785mm*823mm*1589mm Printing Media: UV AB film Printing platform: High-precision aviation aluminum Weight: 270KG RIP Software: RIIN/Flexiprint/CADlink/Maintop/NeoStampa

Model
UV-F603

Nozzle Model
3*EPSON I3200-U1

Printing Speed
High speed mode: 720*2400DPI 8PASS 6m²/h; 720*3600DPI 12PASS 4m²/h

High precision mode 720*1800DPI 6PASS 6m²/h 720*2400DPI 8PASS 5m²/h 720*3600DPI 12PASS 3m²/h

Color
G+W+CMYK+V

Printing Format
600mm

Printing Media
UV ABfilm

Resolution
6/8/12PASS

Ink supply system
White ink circulation and stirring

UV light curing system
Water cooler+UV LED lamp(to ensure long-term high-intensity operation)

Machine size
L/W/H: 1785mm*823mm*1589mm

Lamination
Integrated automatic laminator

Power Supply
220V 50-60HZ Sleeping:45W, Standby:1100W, Working:2000W

Software
RIIN/Flexiprint/CADlink/Maintop/NeoStampa

Features

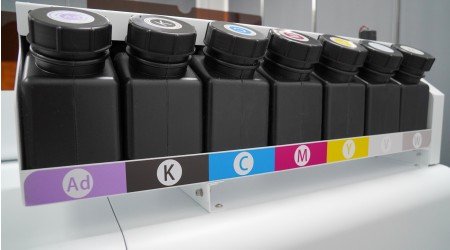

G+CMYK+W+V

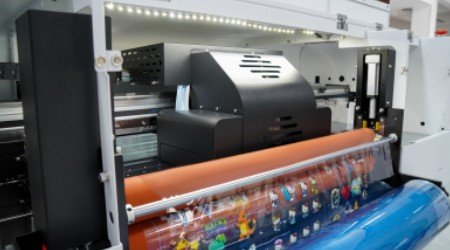

Anti-collision system

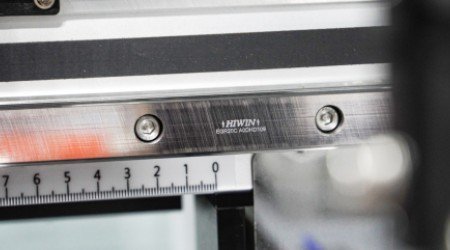

HIWIN guide rail

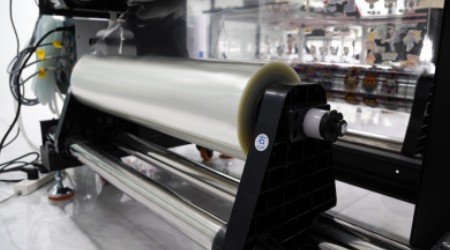

Back feed-in system

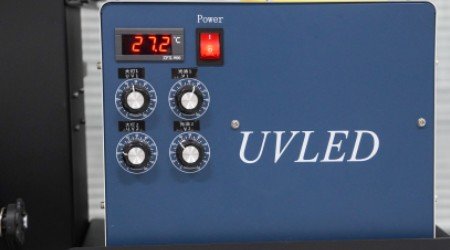

Water-cooling UV LED

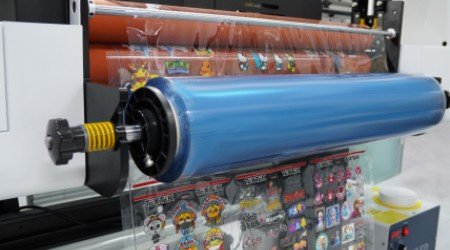

Laminating device

Details

The upper cover of UV-F604 cap station and the left cover of the platform adopt frosted surface

The upper cover of the UV-F604 cap station and the cover on the left side of the platform adopt a frosted surface to avoid ink curing and damage to the print head

Printer overall cover

The printer is easy to operate, and the overall cover of the machine can reduce the adhesion of dust during the printing process and ensure the printing quality
