UV Printer
UV DTF-F30 V2
A3 UV DTF Printer
Printhead: 3*EPSON I1600-U1 Printing Speed: 6PASS 5㎡/hour 720*900DPI Print Width: 300mm Printing Color: CMYK+W+V Media Transfer: UV AB film RIP Software: RlIN/Flexiprint/CADlink/Maintop
Printer Model
UV DTF-F30 （30cm UV DTF Printer）
Print head
3*EPSON I1600-U1
Printing Width
300mm/ 12inch
Printing Speed
High speed mode
720*900DPI 6PASS 5m²/h
720*1200DPI 8PASS 4m²/h
720*1800DPI 12PASS 2m²/h
High precision mode
720*900DPI 6PASS 4m²/h
720*1200DPI 8PASS 3m²/h
720*1800DPI 12PASS 2m²/h
Printing Color
CMYK+W+V
Print Media
UV AB Film
RIP Software
Riin/Flexiprint/Cadlink/Maintop
Lamination
Integrated automatic laminator
Ink curing
LED Curing
Power Supply
220V; 50-60 HZ; 400W
Work Environment
TEMP.:20℃-30℃ Humidity:35%-65%
Size
Machine Size/Weight: 1180*957*1256mm 150kg
Packaging Size/Weight: 1570*880*740mm 162kg
UV DTF-F30 （30cm UV DTF Printer）
Print head
3*EPSON I1600-U1
Printing Width
300mm/ 12inch
Printing Speed
High speed mode
720*900DPI 6PASS 5m²/h
720*1200DPI 8PASS 4m²/h
720*1800DPI 12PASS 2m²/h
High precision mode
720*900DPI 6PASS 4m²/h
720*1200DPI 8PASS 3m²/h
720*1800DPI 12PASS 2m²/h
Printing Color
CMYK+W+V
Print Media
UV AB Film
RIP Software
Riin/Flexiprint/Cadlink/Maintop
Lamination
Integrated automatic laminator
Ink curing
LED Curing
Power Supply
220V; 50-60 HZ; 400W
Work Environment
TEMP.:20℃-30℃ Humidity:35%-65%
Size
Machine Size/Weight: 1180*957*1256mm 150kg
Packaging Size/Weight: 1570*880*740mm 162kg
Features

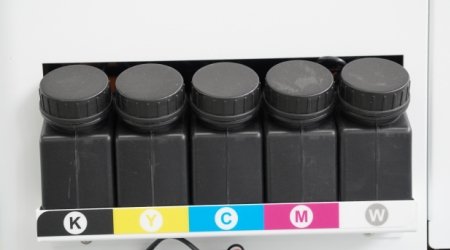

CMYK+W+V

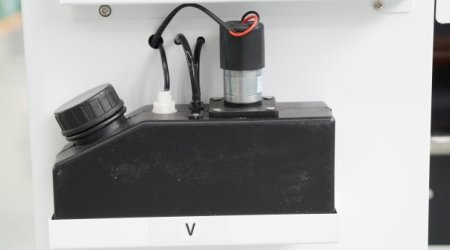

Varnish stirring

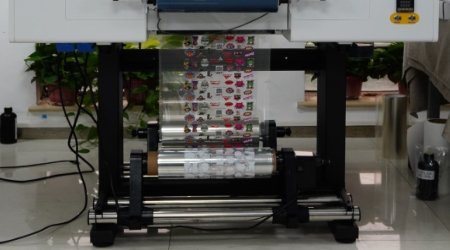

Feed-in system

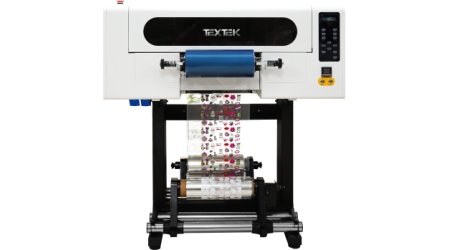

3*EPSON I1600-U1 Printheads

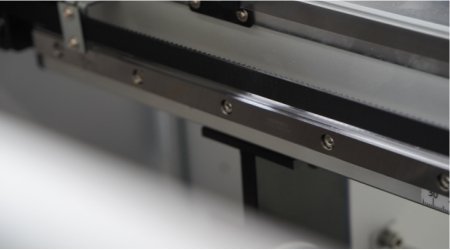

HIWiN guide rail
