Sublimation Printer
Sublimation-TK1903/TK1904
Dye Sublimation Printer TK1903/TK1904
Printhead: 3/4*EPSON I3200-A1Printheads Print Width: 1900mm Ink Type: Sublimation ink Ink Color: C M Y K Print Speed: (3printheads)360*1200DPI 2Pass 162m²/h; (4printheads)360*1200DPI 2Pass 180m²/h RIP Software: Maintop, Flexiprint, Onyx, NeoStampa, etc. Maintop7.0 (Standard Equipped) Power: Input voltage: 210-230VAC; Printing power: 4.4-8.8KW Machine size/weight: 4206*2200*1500mm(L*W*H) 1300kg
Model
TK 1903
TK 1904
Printhead
3 EPSON I3200-A1 Printheads
4 EPSON I3200-A1 Printheads
Print speed
360*1200DPI 2PASS 162m²/h
360*1800DPI 3PASS 109m²/h
360*2400&720*1200DPI 4PASS 82m²/h
360*1200DPI 2PASS 180m²/h
360*1800DPI 3PASS 120m²/h
360*2400&720*1200DPI 4PASS 90m²/h
Ink type
Sublimation ink; color: C M Y K
Print width
1900mm
Print Media
Transfer paper
Media transmit
Pinch roller mode
Dryer

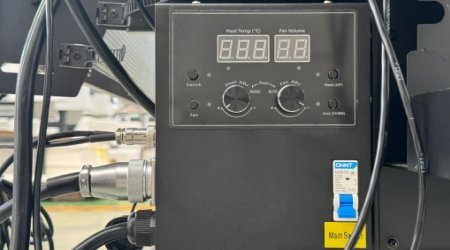

Extra intelligent Dryer Device
Moisture mode
Full seal, auto moisture, and cleaning
Rip software
Maintop, FlexiPRINT, ONYx, Neostampa, etc. Maintop 7.0 (Standard Equipped)
Image format
JPG, TIF, PDF, etc
Computer configuration
Computer system: WIN7 64 Bits WIN 10 64 Bits; Hard disk:500G or more
Ram: 8G, GPU: ATI mobility Memory 4G, CPU: intel i7 processor
Standard configuration
Intelligent Drying System
Liquid level alarm system
Waste ink alarm system
Working environment
Temp.: 18°c-30°c,Humidity: 35%-65%
Power supply
Input voltage:210-230VAC Input voltage:210-230VAC
Machine printing power: 4.4KW Machine printing power: 8.8KW
Dryer: Max 3.6KW Dryer: Max 7.2KW
Dimension
Machine size: 3270*1110*1545mm Machine size: 3270*1110*1545mm
Printer plywood case: case:3450*950*1160mm Printer plywood case: case:3360*850*1120mm
Tension system: 2460*430*380mm Inflatable roller plywood case: 2555*1000*1050 mm
Package/Weight
3520*1000*9100mm 454kg
TK 1903
TK 1904
Printhead
3 EPSON I3200-A1 Printheads
4 EPSON I3200-A1 Printheads
Print speed
360*1200DPI 2PASS 162m²/h
360*1800DPI 3PASS 109m²/h
360*2400&720*1200DPI 4PASS 82m²/h
360*1200DPI 2PASS 180m²/h
360*1800DPI 3PASS 120m²/h
360*2400&720*1200DPI 4PASS 90m²/h
Ink type
Sublimation ink; color: C M Y K
Print width
1900mm
Print Media
Transfer paper
Media transmit
Pinch roller mode
Dryer
Extra intelligent Dryer Device
Moisture mode
Full seal, auto moisture, and cleaning
Rip software
Maintop, FlexiPRINT, ONYx, Neostampa, etc. Maintop 7.0 (Standard Equipped)
Image format
JPG, TIF, PDF, etc
Computer configuration
Computer system: WIN7 64 Bits WIN 10 64 Bits; Hard disk:500G or more
Ram: 8G, GPU: ATI mobility Memory 4G, CPU: intel i7 processor
Standard configuration
Intelligent Drying System
Liquid level alarm system
Waste ink alarm system
Working environment
Temp.: 18°c-30°c,Humidity: 35%-65%
Power supply
Input voltage:210-230VAC Input voltage:210-230VAC
Machine printing power: 4.4KW Machine printing power: 8.8KW
Dryer: Max 3.6KW Dryer: Max 7.2KW
Dimension
Machine size: 3270*1110*1545mm Machine size: 3270*1110*1545mm
Printer plywood case: case:3450*950*1160mm Printer plywood case: case:3360*850*1120mm
Tension system: 2460*430*380mm Inflatable roller plywood case: 2555*1000*1050 mm
Package/Weight
3520*1000*9100mm 454kg
Features

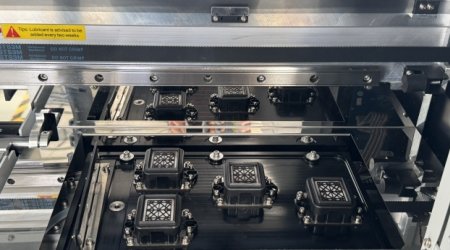

3/4 Epson I3200-A1 Original Printheads
Anti-collision system

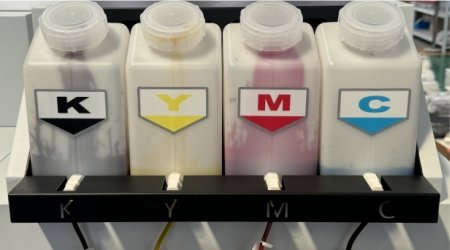

Level Continuous Ink Supply System

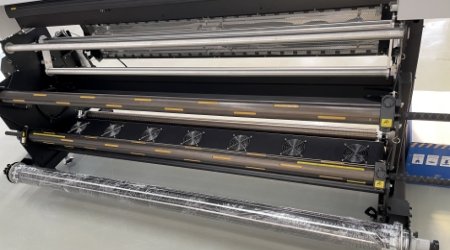

Inflatable Roller Device for model TK1904

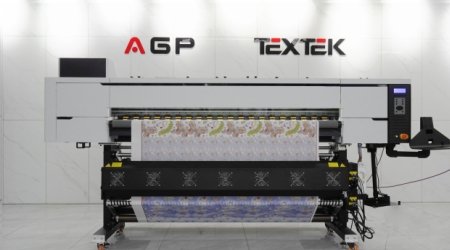

Full Seal Auto Moisture and Cleaning
