DTF Transfer Film Printer DTF-TK1600

Printhead: 5/6 Epson I3200-A1 Printhead Quantity: 5/6 Print Width: 1600mm Printing Color: 3CMYK+2W / 2CMYK+ 2FMFY+2W Printing Speed: 720*1800DPI 6PASS 48m²/h 720*1800DPI 6PASS 37m²/h RIP Software: RllN/Flexiprint/CADlink/NeoStampa

Printer Model
DTF-TK1600 （1600mm DTF Printer）

Printhead
5pcs EPSON I3200-A1
6pcs EPSON I3200-A1

Printing Speed
High speed mode

720*1800DPI 6PASS 37m²/h

High precision mode

720*1800DPI 6PASS 28m²/h
High speed mode

720*1800DP 6PASS 21m²/h

720*2400DPI 8PASS 17m²/h

High precision mode

720*1800DPI 6PASS 14m²/h

720*2400DPI 8PASS 12m²/h

Printing Width
1600mm

Printing Color

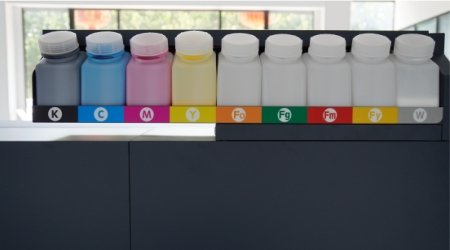

3CMYK+2W / 2CMYK+ 2FMFY+2W

Print Media

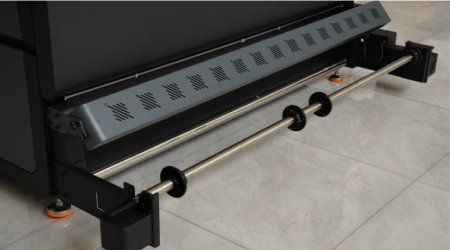

Auto-feeding and take-up system

Heating System
Front/middle/rear 3 stage heating

Ink System
Auto ink supply, white ink circulating and stirring

RIP Software
RllN/Flexiprint/CADlink/Maintop/NeoStampa

Packaging Size/Weight
Printer:3130*760*870mm 355.5kg

Powder Shaker: 2120*1670*1170mm 643kg

Machine size/weight
Printer:2970*850~1565mm

Powder Shaker:2160*2090*967mm

Power Supply
110V/220V 50~60HZ 510W/10KW

Work Environment
Temperature:20-C~30°℃ Humidity:35%~65%

Features
